تفاصيل المنتج:
شروط الدفع والشحن:
|
| demension: | الارتفاع 750 ملم × العرض 750 ملم × العمق 2000 ملم | يكتب: | مجلس إدارة طاقة الاتصالات |
|---|---|---|---|
| ضمان: | 12 شهرًا | مادة: | الصلب المجلفن |
| العزل: | مع العزل الحراري | الفضاء الداخلي: | 19 بوصة، 38 يو |
| باب: | مع باب أمامي واحد | خيارات التثبيت: | شنت الأرضية |
| مستوى IP: | IP65 | نظام التبريد: | مكيف هواء / مبادل حراري / مراوح الطوارئ |
| إبراز: | Outdoor Telecom Power System IP65,9kW Telecom Power Enclosure,150A Rectifiers Outdoor Power System,9kW Telecom Power Enclosure,150A Rectifiers Outdoor Power System |
||
Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 9kW 150A Rectifiers

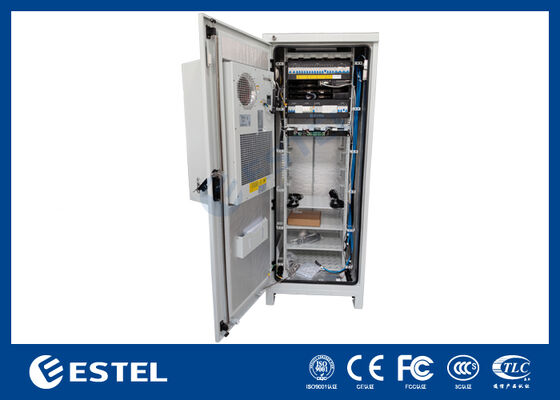

1. Introduction of Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 9kW 150A Rectifiers
ET7575200A-38U-9kW/150A is an outdoor cabinet which can provide stable power supply for telecom equipment while protect customer’s equipment from damage and extreme weather conditions, it provides stable and high-quality DC power supply for telecom IT equipment. The cabinet is an ideal solution for physical connections of outdoor telecommunication equipment which need DC power supply.

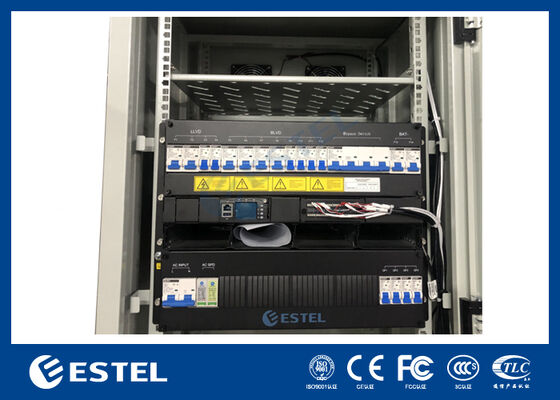

2. Parameters of 9kW Rectifier Power System
Telecom power systems are customized products, the rectifier capacity, solar power capacity, input breakers, LLVD & BLVD breakers, and breaker brands all are based on customer's requirements.

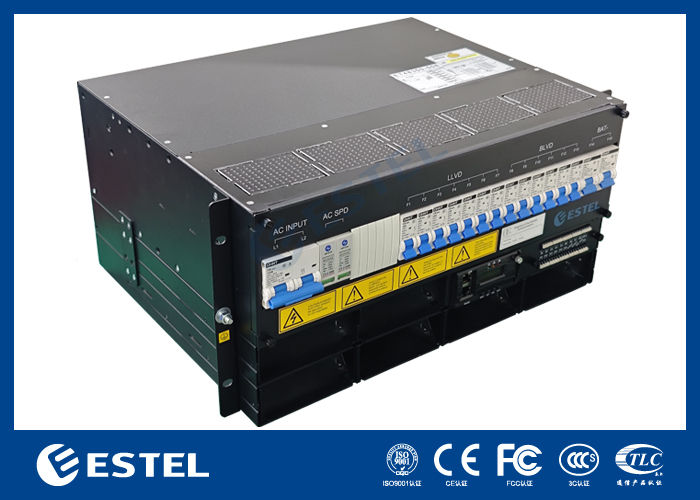

The power system for this power cabinet is a 9kW 150A pure rectifier power system. And its parameters are listed in below table.
| Item | Parameter | |
| Physical |
Size |
W × D × H = 482.6mm × 350.6mm × 8U (H) |
|
Weight |
≤ 42kg (Without modules) |
|
|
Installation |
19’’ standard rack mountable |
|
|
Cable Routing |
Bottom in and top out |
|
|
Maintenance |
Front maintenance, hot-swappable |
|
|
IP Grade |
IP20 | |
| AC Power Distribution |
Input |
1-Phase, 220VAC |
|
Input MCB |
2× 125A/3P |
|
|
Frequency |
45-65Hz, Rated value: 50Hz/60Hz |
|
|
AC SPD |
20kA/40kA, 8/20μs |
|
|
AC Output |
/ | |
|
DC Power Distribution |
Output |
-43VDC to -58VDC, Rated output: -53.5VDC |
| Max. Capacity | 9kW Rectifier System (3× 3kW); | |
|
Battery MCBs |
2× 125A/1P |
|
| Load MCBs |
LLVD: 2× 125A/1P, 2× 63A/1P |
|
|
BLVD: 4× 125A/1P, 4× 63A/1P |
||
|
DC SPD |
10kA/20kA, 8/20μs |
|
|
Rectifier Module |
Input Voltage |
85VAC - 300VAC, Rated value: 220VAC |
|
Efficiency |
≥ 96% |
|
|
Rated Output Power |
3000W |
|
|
Working Temperature |
-40℃ to +75℃ (50℃ @full load output) |
|
|
Size |
W × D × H = 106.5mm × 286mm × 41.5mm (1U) |
|
|
Weight |
≤ 2.1kg |
|
|
Cooling |
Forced air cooling |
|
|
Power Factor |
≥ 0.99 @220VAC, 20% - 100% load |
|
|
Power Monitoring |
Signal Input |
4-way AI (3 battery temperature sensors, 1 ambient temperature sensor); 8-way DI; |
|
Alarm Output |
8-way DO |
|
|
Communication Ports |
LAN, USB, RS485, SNMP |
|
|
Display Mode |
LCD | |
3. Features of 38U IP65 Outdoor Power Enclosure

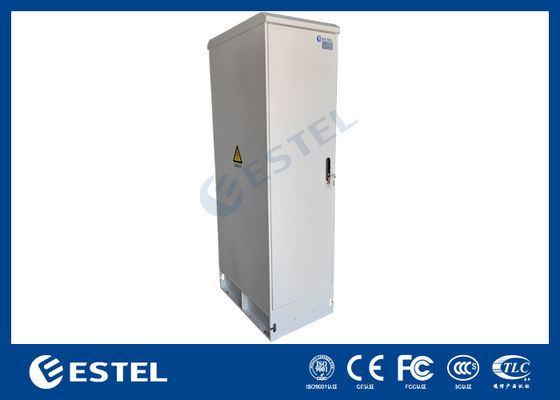

1) IP65 One Compartment Outdoor Cabinet Introduction
ET7575200A this outdoor cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets,etc.
2) Outdoor Cabinet Optional Accessories
3) Packing and Shipping
Cabinet package use free fumigation woodcase which is suitable for export. This package is anti moisture, anti impact and srong to ensure safe transportation.
