| نطاق تردد الإدخال: | 50/60 هرتز ± 4 هرتز | جهد حزمة البطارية: | 192VDC افتراضيًا (يمكن تخصيصه إلى 240VDC) |
|---|---|---|---|
| كمية الخليط: | 12VDC × 16 قطعة (يمكن تخصيصها إلى 2 قطعة) | جهد الخرج: | 208 فولت تيار متردد @ 220 فولت تيار متردد @ 230 فولت تيار متردد @ 240 فولت تيار متردد |
| تردد الإخراج: | 50 هرتز ± 0.1 هرتز، 60 هرتز ± 0.1 هرتز | عامل انتاج الطاقة: | 0.8 |
| إبراز: | 6-20kVA UPS telecom power system,high-end UPS with advanced technology,telecom UPS system with warranty,high-end UPS with advanced technology,telecom UPS system with warranty |
||
Uninterruptible Power Supply(UPS)
Product Overview

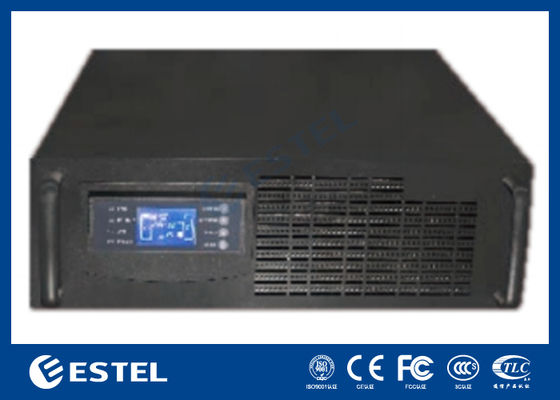

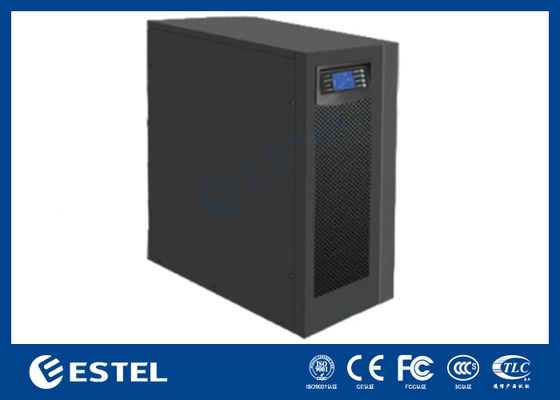

ESTEL 6-20kVA UPS series is specially designed for server applications in small and medium-sized enterprises.It supports rack installation mode and tower installation mode.Featuring an online double-conversion design and DSP digital technology,it delivers pure sine wave output with exceptional performance and a high-end appearance,it presents the perfect integration of cutting-edge technology and traditional products.
Product Features
| UPS Capacity | Y | 6KL | 10K | 10KI | 10K | 15KL | 20KL | ||
| Rated Output Capacity | 6KVA/4.8kW | 10kVA/8kW |
15kVA/ 12kW |
20kVA/ 16kW | |||||
| Rated Voltage | 208VAC | 220VAC | 230VAC | 240VAC | 3-phase in,1-phase out:220±1% | ||||
|
AC Input |
Input Voltage Range | 50%load:115-300VA; 100%load:176-300VAC; |
50%load:190-520VAC(3-phase) 100%load:305-478VAC; |
||||||
| Input Frequency Range | 50/60Hz±4Hz | ||||||||
|
Battery Input |
Battery Pack Voltage | 192VDC by default(can be customized to 240VDC) | |||||||
| Battery Quantity | 12VDC×16pcs(can be customized to 2Opcs) | ||||||||
| Charging Current |
Built-in batteries:1A±10% default setting, max.2A; External batteries:4A±60% default setting, max.6A; |
||||||||
|
AC Output |
Output Voltage | 208VAC @220VAC@230VAC@240VAC | |||||||
| Output Frequency | 50Hz±0.1Hz,60Hz±0.1Hz | ||||||||
| Waveform | Linear load:Sine wave,THD<3%;Non-linear load:Sine wave,THD<8%; | ||||||||
| Output Power Factor | 0.8 | ||||||||
|
Overload Capability |
AC Mode |
100%-110%:10min; 110%-130%:1min; >130%:1sec; |
100%-110%:
30min; 100%-130% 5min >130%:1sec; |
100%-110%:15min; 110%-130%:30sec; >130%:1sec; |
|||||
|
Battery Mode |
100%-110%:30sec: 110%-130%:10sec; >130%:1sec; |
100%-110%:
3min 110%-130%: 30sec >130%:1sec; |
100%-10%:5min; 110%-130%:1sec; >130%: act immediately; |
||||||
| Efficiency | AC Mode | >90% | >91% | ||||||
| Battery Mode | >89% | >91% | |||||||
| Communication and Monitoring |
RS232(can convert to RS485);Smart card slot(can expand with multiple monitoring modes,via SNMP,mobile phone text message,etc.) |
||||||||
|
Tower Type |
Weight (kg) | 50 | 12.6 | 59 | 13.2 | 14.8 | 15.3 | 15.3 | |
| Size(D×W×H)(mm) | 500×240 ×460 |
425×190 ×320 |
500×248 ×620 |
425×190 ×320 | 425×190 ×320 | ||||
| Rack Type | Weight (kg) | 18 | 19.5 | 21 | 42 | 42 | |||
| Size(D×W×H)(mm) | 600×440 ×130 | - | 600×440 ×130 | 600x440x130 | |||||
