Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers

شهادة
الصين Tianjin Estel Electronic Science and Technology Co.,Ltd الشهادات
الصين Tianjin Estel Electronic Science and Technology Co.,Ltd الشهادات
زبون مراجعة
في السنوات الثلاث الماضية ، كان تعاوننا مبهجًا للغاية ، شكرًا للدعم الفني لشركتك وخدمة المرضى ، المستخدم النهائي راضٍ جدًا عن جودة خزانة الاتصالات الخارجية مع التبريد.

—— أنتوني

الاستجابة في الوقت المناسب ، والمهارات المهنية ، والموقف الصارم ، والتسليم السريع ، نحن راضون للغاية ، والتعاون سلس للغاية.

—— رجولي ... يتصف بالرجولة

من عينة واحدة إلى 45 مجموعة ، 76 مجموعة ، 200 مجموعة ، أنشأنا تدريجيًا ثقة قوية.

—— بارمار

التكييف يعمل منذ عام ونصف.

—— لويس البرتو

الصناديق رائعة ونحن سعداء بها.

—— أندريه سلياشين

يمكن أن توفر لنا دائمًا اقتراحًا جيدًا وحلًا ، ونحن ممتنون للغاية.

—— نيلسون

ابن دردش الآن

Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers

Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers
Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers

صورة كبيرة :  Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers

تفاصيل المنتج:
مكان المنشأ: شنتشن ، الصين (البر الرئيسي)
اسم العلامة التجارية: ESTEL
إصدار الشهادات: ISO9001, CE, 3C, FCC, TLC, IP55
رقم الموديل: ET7575200A-38U-15kW/250A
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: 715-4286 usd
تفاصيل التغليف: حالة خشبية الكرتون في البليت
وقت التسليم: 15-20 أيام العمل
شروط الدفع: L / C ، D / A ، D / P ، MoneyGram ، T / T
القدرة على العرض: 3000 مجموعة شهريا
مفصلة وصف المنتج
demension: الارتفاع 750 ملم × العرض 750 ملم × العمق 2000 ملم يكتب: مجلس إدارة طاقة الاتصالات
ضمان: 12 شهرًا مادة: الصلب المجلفن
العزل: مع العزل الحراري الفضاء الداخلي: 19 بوصة، 38 يو
باب: مع باب أمامي واحد خيارات التثبيت: شنت الأرضية
مستوى IP: IP65 نظام التبريد: مكيف هواء / مبادل حراري / مراوح الطوارئ
إبراز:

Outdoor Telecom Power System IP65,15kW Telecom Power Enclosure,250A Rectifiers Outdoor Power System

,

15kW Telecom Power Enclosure

,

250A Rectifiers Outdoor Power System



Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers



1. Introduction of Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers



This telecom power system is a powerful system designed by ESTEL, it provides intelligent power management and stable power supply for telecommunication equipment, it supports various power input, such as grid power, solar power, diesel generator, and battery power.

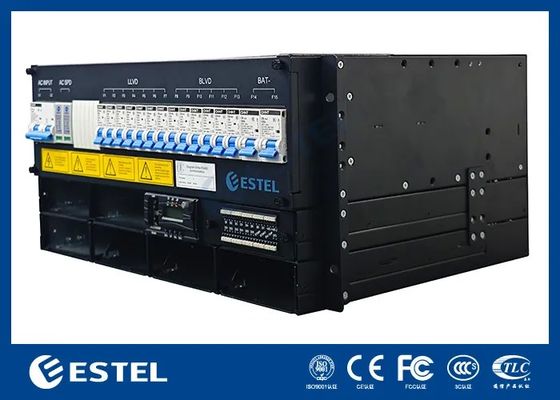

2. Parameters of 15kW Rectifier Power System



ESTEL telecom power system is not a standard model, it composed of a high-quality power sub-rack, rectifier modules, solar modules, controllers, circuit breakers, surge protection devices, etc. It can provide flexible configuration, to meet different customers’ project needs.



Advantages:

  • Physical features: 19’’ standard rack mountable sub-rack with variable height, from 2U to 15U.
  • Power input features: It accepts power inputs from grid power, solar panels, diesel generators, and transfer grid power and solar power into battery energy as emergency backup power supply.
  • Power output features: It is configured with circuit breakers for load, with different priority of LLVD and BLVD, it is also configured with surge protection devices, breakers for battery connection, and with option for bypass switch. And by connection to a inverter, it can provide stable AC output to AC load equipment.
  • Control functions: It provide monitoring and control for the modules, for battery charging and discharging status, temperature sensor, etc.
  • High compatibility: It is compatible with the main brands of lithium batteries on the market.



Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers 0

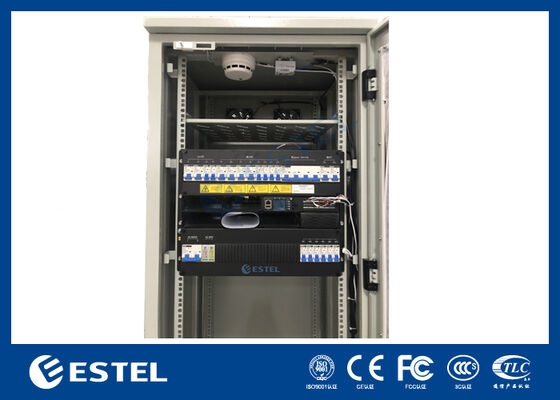

3. Features of 38U IP65 Outdoor Power Enclosure



ET7575200A-38U is an outdoor power cabinet which can protect customer’s equipment from damage and extreme weather conditions. 38U telecom equipment, power system and batteries can be accommodated inside the cabinet. The cabinet can provide power for active telecom equipment and passive telecom equipment at the same time.



Main features:

  • High protection grade: I655;
  • Strong anti-theft ability, embedded door, inner hinges, three-point lock, supporting additional padlock;
  • Adopt highly efficient cooling unit: air conditioner;
  • Comprehensive protection (optional): door sensor, smoke sensor, water sensor, temperature and humidity sensor, etc.;
  • Support remote management, improve security and minimize customer’s operation cost;



The outdoor power cabinet is widely used in telecom operators’ mobile telecommunication sites, outdoor small shelters, railway electrical control cabinets, electronic police, communication base stations, outdoor air detection stations, solar control cabinets, etc.



Outdoor Telecom Power System IP65 Outdoor Power Enclosure with 15kW 250A Rectifiers 1



4. Advantages of Outdoor Telecom Power System



  • Cabinet size customizable
  • Flexible cooling solutions
  • Intelligent power system
  • Cost-effective
  • Operator-grade quality
